Barracuda Cedar Strip Canoe Kit

SKU KIT-BARRACUDA
Original price $0
Original price $2,695.20 - Original price $2,695.20
Original price
Current price $2,695.20 USD
$2,695.20 - $2,695.20
Current price $2,695.20 USD

Building your own cedar strip canoe from a cedar strip canoe kit allows you to create an exact custom design for your needs and preferences. A cedar strip canoe kit contains all the materials you need to build your own unique cedar strip canoe.

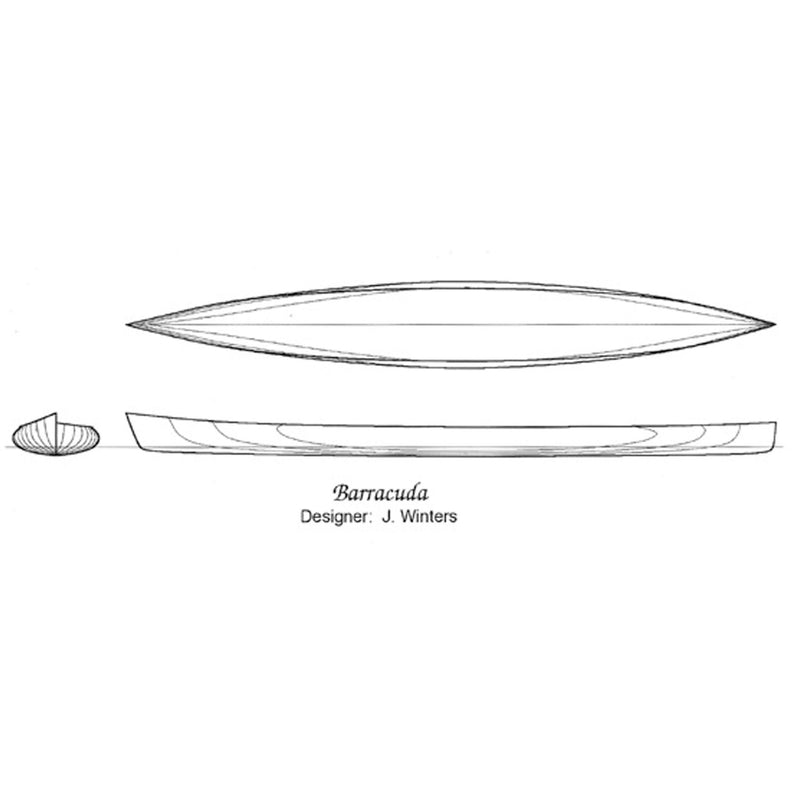

The Barracuda was originally commissioned for a strong paddler who wanted the speed of a solo marathon racer but more maneuverability and seaworthiness to allow a more varied paddling experience. This is not a boat for novices. A good sit-and-switch style of paddling will really make this boat fly but its narrow waterline beam will keep you on your toes.

The original boat had a knuckle near the sheer (ala Osprey) but that proved difficult to plank for amateur builders so I replaced the knuckle with a strong tumblehome. Narrow planks along this area will be needed but the benefits in paddling far outweigh any building difficulties. A 1" vertical strip along the sheer makes installing the rubrails simpler. The original builder was obsessed with light weight, left off the outwales and rolled the hull in to make a super light inwale. I don't recommend this unless you are very, very patient as the inwale has to be shaped perfectly to get proper strength.

A sliding seat is almost essential in this boat. It should allow seating from station 8.25 at the most forward position to Station 9.0 at the aftermost position.

You won't be able to race this boat as it is too narrow to fit marathon rules. I don't think, you will mind though. The best part of paddling Barracuda has nothing to do with competition and a lot to do with just plain fast paddling and maybe even some lightweight tripping." ... John Winters.

The Barracuda cedar strip canoe kit contains all the materials needed for a successful build, including pre-cut cedar strips, fiberglass cloth, epoxy resin and detailed plans.

  • Overall Length: 17.25'
  • Waterline Length: 16.75'
  • Maximum Beam: 28"
  • Waterline Beam: 24.4"
  • Bow Height: 14.5"
  • Centre Depth: 10"
  • Stern Height: 11.4"
  • Bow Rocker: 2"
  • Stern Rocker: 1.3"
  • Freeboard @ 210 lbs: 7”


For information of what is included in your cedar strip kit, click here.

Choose Your Build Options



Customize Wood Options


Optional Customizations

Kit includes all the needed application tools for applying epoxy resin

Cedar strips, Ash & Pine Stems X 12, 60 Inch 6 Ounce Fiberglass, Brass Stem Bands w/ Hardware, Seat Hanging Kit, Yoke/Thwart Hanging Kit, Titebond 32 Ounce, Epifanes Clear Varnish, Onyx Vanish Brush 2 Inch, #8 1-1/4 FHTS X 50pcs, #8 3/4 FHTS X 50pcs, Brass Eye Strap 3/8 X 1-3/8, Brass Flat Head #8 3/4 X 2pcs, Brass Ring 1 Inch
