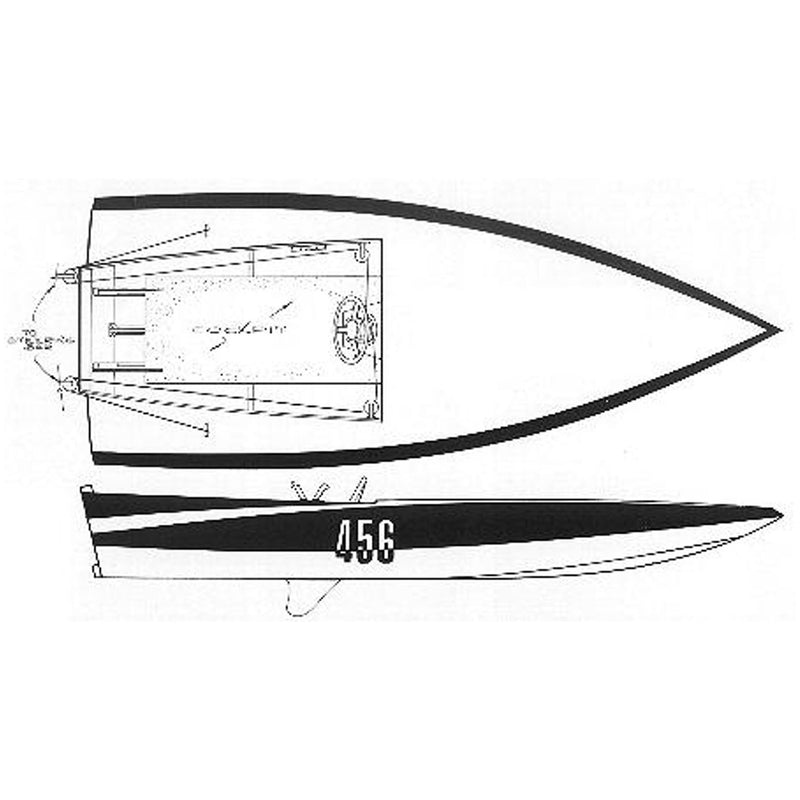

Glen-L Class AB Plans & Patterns
CLASS A-B racing runabout was designed to fit into APBA racing classes that are no longer active. It's not a toy, but a full-fledged racing boat. Speed potentials are fantastic! Straightaway runs in excess of 60 mph have been attained in Class "A", and over 70 mph in Class "B"! Obviously such speeds are attained with the most finely tuned motor and boat combination.
Our CLASS A-B provides unlimited thrills on the water for those willing to optimize their racing machine. She has all the requirements to make you a winner, full length, flaring sides and cut-away bow prevent tripping on those fast, tight turns. Our designers took great care to reduce frontal area for minimum wind resistance, together with just the proper amount of wetted surface for maximum speeds with safety. Construction is simple, but lightweight and strong.
| Characteristics | |
|---|---|
| Length overall | 10'-6" |
| Beam | 4'-1/2" |
| Hull depth | 13 1/2" |
| Hull weight (approx.): | 110 lbs. |
| Racing weight min. (boat, driver, & motor): | Class A - 345 lbs. Class B - 395 lbs. |
- Class A - Over 7.5 through 15 cu. in.
- Class B - Over 15 through 20 cu. in.
- For pleasure use: 10 hp
- Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
