Glen-L Class J Plans & Patterns
SKU GLP-CLASSJ
by Glen L
Original price
$74.32
-
Original price
$74.32
Original price
$74.32
$74.32
-
$74.32
Current price
$74.32
Product Characteristics
- Length: 9'-0"
- Beam: 4'-5"
- Hull depth: 12 1/4"
- Hull weight (approx.): 85 lbs.
- Racing weight min. (boat, driver, & motor): 245 lbs.
- Class racing division: "J" racing runabout

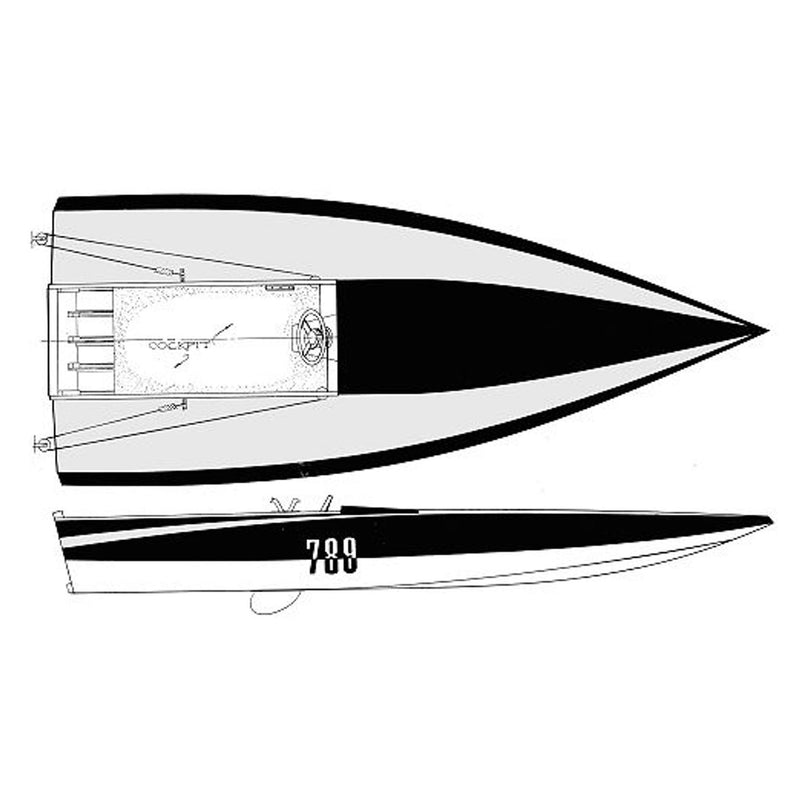

- Hull type: Features high speed monoplane bottom with wide, flaring, anti-trip chine sides. Canted decks combined with wedge-shaped planform minimizes frontal resistance. All surfaces are developed for sheet plywood planking for minimum hull weight.
- Power: Short shaft outboard motor up to and including 7.5 cu. in. For pleasure use: 7.5 hp
- Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
